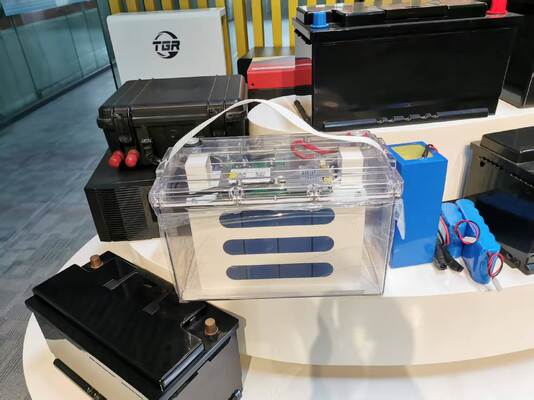

G TECH 25.6V100AH Lead Acid Replacement LiFePO4 Battery 6000 time Long Cycle Life
Produktdetails
| Material | LiFePO4 | Stromspannung | 25,6 V |
|---|---|---|---|
| Kapazität | 100AH | Energie | 2560WH |
| Hervorheben | 25.6V 100Ah LiFePO4 battery,LiFePO4 battery with 6000 cycles,lead acid replacement LiFePO4 battery |
||
Produkt-Beschreibung
• Product Advantages
Totally new A Grade
EVE , BYD, CALB CETC Cells
6000 life cycle
Bluetooth function optional
For solar energy storage
|
序号 NO. |
项目 Item |
常用参数 General Parameter |
备注 Remark |
||||
|
1 |
型号(Model) |
LK25.6-100 |
|
||||
|
2 |
典型容量(0.2C5A) Standard capacity(0.2C5A) |
100Ah |
|
||||
|
3 |
最小容量(0.2C5A) Minimum Capacity(0.2C5A) |
98Ah |
|
||||
|
4 |
额定电压 Rated voltage |
25.6V |
|
||||
|
5 |
最大充电电压 Max Charge voltage |
29.2V |
|
||||
|
6 |
放电截至电压 Cut-off voltage |
20V |
|
||||
|
7 |
标准充放电 Standard charge and discharge current |
20A |
|
||||
|
最大充电电流 Maximum Continuous Charge Current |
100A |
见充电策略表 |
|||||
|
8 |
最大持续放电电流 Max Continuous discharge current |
100A |
见放电策略表 |
||||
|
9 |
电池重量(Approx.) Weight(Approx including case) |
≈ 10.3 Kg |
|
||||
|
10 |
内阻(Max, at 1000Hz.) Impedance(Max, at 1000Hz.) |
≤8mΩ |
包括测试夹具内阻 Includes test fixture internal resistance |
||||
|
11 |
出货 SOC Battery Shipping SOC |
30%±5% SOC |
空运 Air freight |
||||
|
65%±5% SOC |
海运 Sea transport |
||||||
