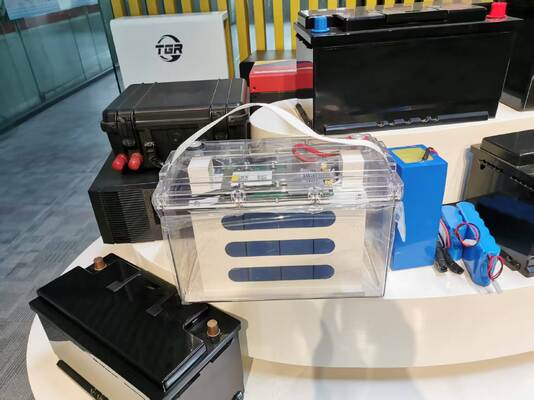

G TECH 12.8V 100Ah LiFePO4 Battery with 6000 Cycle Life and Transparent Housing for Solar Energy Storage
Produktdetails
| Material | LiFePO4 | Stromspannung | 12,8 V |
|---|---|---|---|
| Kapazität | 100AH | Energie | 1280Wh |
Produkt-Beschreibung
Product Advantages
- Totally new A Grade LiFePO4 cell
- Advanced automatic battery production equipment
- 6000 cycle life, 5 year warranty
- Bluetooth function optional
For solar energy storage
| 序号 NO. |
项目 Item |
常用参数 General Parameter |
备注 Remark |
||||
|---|---|---|---|---|---|---|---|

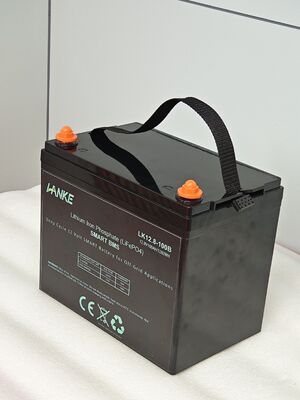

| 1 | 型号(Model) | LK12.8-100 | |||||
| 2 | 典型容量(0.2C5A) Standard capacity(0.2C5A) |
100Ah | |||||
| 3 | 最小容量(0.2C5A) Minimum Capacity(0.2C5A) |
98Ah | |||||
| 4 | 额定电压 Rated voltage | 12.8V | |||||
| 5 | 最大充电电压 Max Charge voltage | 14.6V | |||||
| 6 | 放电截至电压 Cut-off voltage | 8.8V | |||||
| 7 | 标准充放电 Standard charge and discharge current |
20A | |||||
| 最大充电电流 Maximum Continuous Charge Current |
100A | 见充电策略表 | |||||
| 8 | 最大持续放电电流 Max Continuous discharge current |
100A | 见放电策略表 | ||||
| 9 | 电池重量(Approx.) Weight(Approx including case) |
≈ 10.3 Kg | |||||
| 10 | 内阻(Max, at 1000Hz.) Impedance(Max, at 1000Hz.) |
≤8mΩ | 包括测试夹具内阻 Includes test fixture internal resistance |
||||
| 11 | 出货 SOC Battery Shipping SOC | 30%±5% SOC | 空运 Air freight | ||||
| 65%±5% SOC | 海运 Sea transport | ||||||
